Come stampare in scala con Autocad

admin

18 Ott 2014

Autocad, Guide e tutorials, Tips and Tricks

Una semplice e breve guida per stampare in scala con Autocad, uno fra i più noti programmi di Cad in circolazione.

A differenza di altri software (come Vectorworks o Archicad ad esempio) stampare con Autocad può rivelarsi una vera e propria impresa!

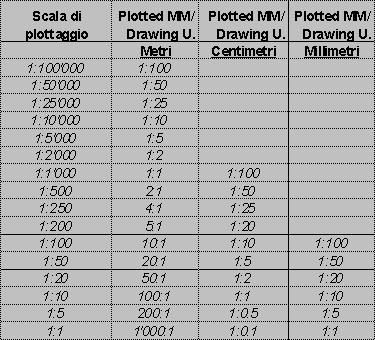

Per nostra fortuna ci viene in aiuto questa magica tabellina, che in modo semplice riunisce tutti i dati che ci servono per impostare in modo giusto la scala di Autocad.

Per stampare in modo corretto dobbiamo prima decidere la Scala di plottaggio a sinistra, poi scegliere la colonna dei Metri, dei Centimetri o dei Millimetri, a seconda dell’unità di misura che abbiamo utilizzato nel disegno. A questo punto non ci resta che inserire il contenuto della casella corrispondente nella finestra di Impostazione Pagina della Stampa di Autocad.

Nell’esempio riportato avevamo disegnato in Metri e volevamo stampare in scala 1:100. Seguendo la tabella, vediamo che, disegnando in Metri e volendo stampare in scala 1:100, dobbiamo inserire dentro la pagina di setup della stampa di Autocad il valore 10:1 (come evidenziato dal cerchio rosso).

A questo punto la stampa dovrebbe uscire con la scala giusta!

NB: fare attenzione ad usare MM quando si va ad impostare la scala di stampa, e NON POLLICI (vedi cerchio rosso della figura 2)
